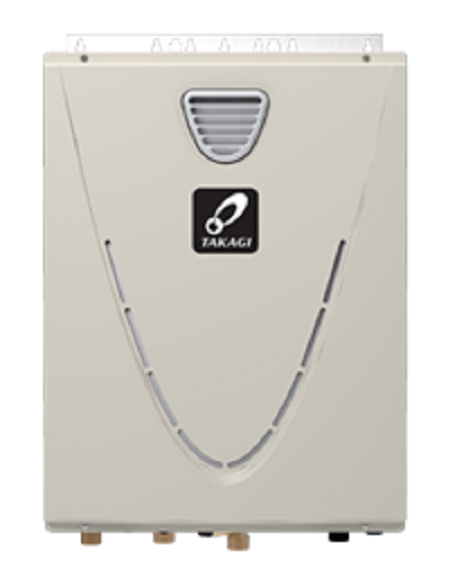

TCT-199O-N - 199,000 BTU Commercial Condensing Tankless Water Heater

Click to enlarge image(s)

TCT-199O-N (Outdoor 199,000 BTU Commercial Natural Gas Condensing Ultra-Low NOx On Demand Tankless Hot Water Heater)

The TCT-199O-N is a High Efficiency Commercial Ultra-Low NOx gas tankless water heater with condensing technology featuring up to 0.95 Uniform Energy Factor (UEF) which lowers operating costs and is environmentally friendly.

Number of showers this unit can handle, depending on ground water temperature.

Warmer Climates

Cooler Climates

Overview

ENERGY STAR® qualified
Primary heat exchanger is constructed of a commercial grade copper that is more resilient to erosion.
Secondary heat exchanger is made of type 316L stainless steel to protect against corrosion.
Complies with Ultra-Low NOx regulations of less than 14 ng/J (<20ppm)
Easy-Link with up to three other CT-199 units to increase flow capacity
Condensing Outdoor model
Safety features include Air-Fuel ratio (AFR) sensor, freeze protection, overheat cut-off fuse, exhaust & water temperature safety control, and troubleshooting diagnostic codes
6-year limited Heat Exchanger Warranty, 5-year parts warranty, 1-year labor warranty for Commercial applications

Tech Specs

Emissions:	Ultra-Low NOx
Maximum BTUs:	199,000
Minimum BTUs:	19,500
Water Connection Location:	Bottom
Water Connection:	3/4"
Flow Rate:	10.00
Heat Exchanger:	Commercial Grade Copper
Voltage:	AC 120V
UEF:	0.95
ENERGY STAR® Qualified:	Yes
LEED Rating:	1.5
Remote Control:	Yes
Technology:	Condensing
Multilink:	Yes

Dimensions & Venting

Height:	23.63"
Width:	17.75"
Depth:	11.25"
Product Weight:	70 lbs.
Vent Type:	NA
Vent Size:	NA

SKU	TCT-199O-N

Weight

69.0 lb

3/4" Lead Free Isolation Valves & Pressure Relief

Isolates the unit for service. Pressure Relief Valve protects the unit and releases if the pressure exceeds 150 psi and up to 200,000 BTUs. (1953 Compliant)

3/4" x 24" Gas Connector

Not Needed

Include with my Unit (+$49.95)

PVC Coated High BTU SS Gas Connector 3/4-inch MIP x FIP (24-inch Length) - Connects the Unit to the Gas Line.

TCT Pipe Cover

Not Needed

Include with my Unit (+$99.95)

Fixed to the bottom of the unit hiding the plumbing to improve look and prevent tampering.

Anti Scale Hard Water Softener and Filter

Not Needed

Include with my Unit (+$499.95)

Combats hard water, removes scale before it can build up, increasing the life of the tankless water heater and time between having to descale the unit.

Neutralizer

Not Needed

Include with my Unit (+$59.95)

Neutralizes the condensate (acidic water) that forms in the secondary heat exchanger, and easily connects to the condensate drain port.
